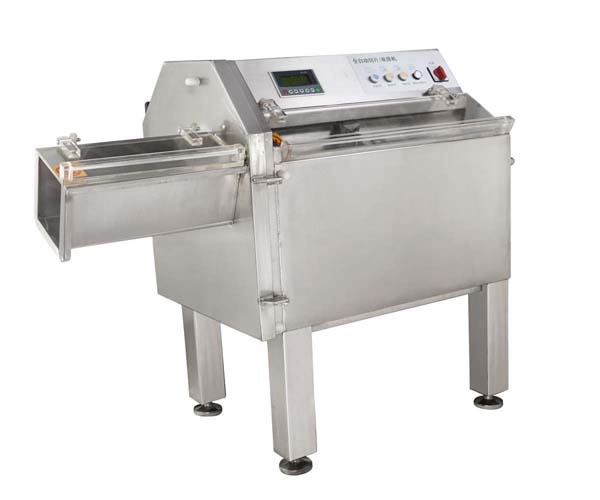

自動切片/砍排機產品簡介

Automatic slicing / cut exhaust machine

一、產品概述

A, product overview

自動切片/砍排機是肉類制品生產制作工藝中的一個重要設備，適用于把冷凍（—4°C）的肉類，香腸、干酪、魚制品，整機，整鴨切成片，也可用作砍排機將排骨切成片。

Automatic slicing / cut row machine is an important equipment in the production of meat products in the manufacturing process, suitable for the freezing (4 degrees C) meat, sausage, cheese, fish products, whole, whole duck cut into pieces, can also be used as cut row machine will chop into pieces.

本廠生產的切片/砍排機，采用連續切割方式，有效保證切片質量，設備成本低，生產效率高，適用于中小型企業，賓館，飯店及超市使用。

The factory production of the slice / cut row machine, using a continuous cutting mode, effectively guarantee the chip quality, low cost of equipment, high production efficiency, applicable to small and medium enterprises, hotels, restaurants and supermarkets.

二、產品特點

Two, product characteristics

1、    自動切片/砍排機構緊湊，安全實用，維護清洗方便，組裝靈活。

1, automatic slicing / cut exhaust mechanism is compact, safe and practical, convenient maintenance and cleaning, flexible assembly.

2、安全防護性能良好，出料槽、進料槽門打開后，轉動的切刀立即停轉。

2, safety performance is good, the feeding trough, feed trough after the door is opened, the cutter rotation stop immediately.

3、切割刀，智能爪子，拆卸方便。

3, the cutting knife claws, intelligent, convenient disassembly.

4、由于高效動態的進料系統，節省了進料時間。

4, because the feeding system for efficient dynamic, saves the feed time.

5、智能型切割特爪，防止產品的滑落，保證了產品的質量。

5, intelligent cutting special claw, prevent the products fall, ensure the quality of the product.

6、重要部件，如控制器，減速機，電機全部采用進口，確保產品質量。

6, the important parts such as controller, motor, reducer, all imported, to ensure product quality.

7、刀具直接與齒輪驅動馬達連接，動力使用效率高。

7, direct tool and gear driving motor is connected with the power to use, high efficiency.

三、主要技術參數

Three, the main technical parameters

產品型號 Tw-kp95

The product model Tw-kp95

最大成品體積（mm³） 170*170*640

The largest product volume (mm fand) 170*170*640

切割厚度 1-40

Cutting thickness (mm) of 1-40

切割速度(片/分鐘) 160

Cutting speed (/ min) 160

額定電壓（V） 380

Rated voltage (V) 380

額定頻率(Hz) 50

Rated frequency (Hz) 50

功率 3

Power (kw) 3

外形尺寸 1650*670*1260

Outline dimension (mm) 1650*670*1260

重量 400

Weight (kg) 400
